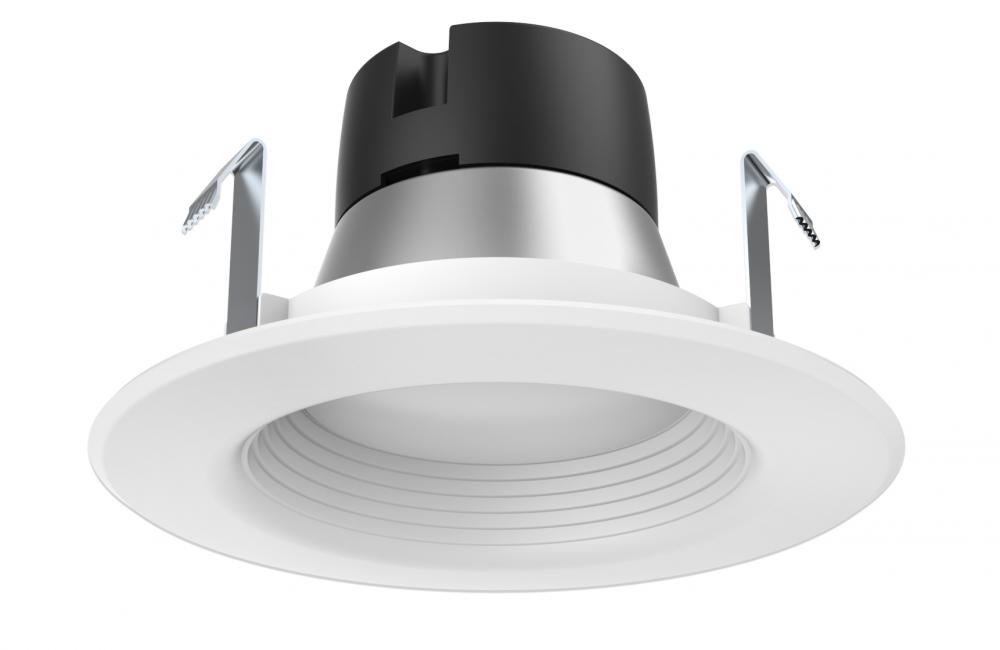

7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts (S9729)
by Satco Products Inc.
7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts
Product Specification
Item #
S9729
Dimensions
Height: 2.91"
Width: 5.31"
Additional product details
Vendor Item #
S9729
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Contemporary
, Traditional
, Modern
Option
LED
, Prop 65
Lumens
450-800
Kelvin
2501-3000
Category
Recessed
Sub Category
Retrofits
Style
Modern and Contemporary
Additional Info
The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a
Avg Rated Hours
35000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
5.31
Dimmable
Yes-Dimmable
Each Height
5.91
Each Length
5.51
Each Width
3.62
Lumens
460L
Tariff Code
9405.42.6000
Warranty
3 Year Limited - Fixtures
Amps
0.625A
ANSI Base
GU5.3
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
4 in.
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0682
Each Quantity
1
Efficacy
61.33 LPW
FCC Compliant
Yes
Feature 1
Diameter: 5.31 inches, Height: 2.91 inches
Feature 2
Dimmable
Feature 3
White and Frosted finish
Feature 4
3000K Warm White Light
Feature 5
460 lumens
Feature 6
Wet location rated for indoor use
Feature 7
Easy installation
Feature 8
FCC and RoHS compliant
Feature 9
3 year limited warranty
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
50W
Includes
Bi Pin GU5.3 Adapter included with this fixture
Indoor Outdoor
Indoor
Installation Notes
GU5.3 base
JA8 Compliant
No
Long Description
Satco's S9729 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and
Material
Aluminum
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Quantity In Pack
1
Rated For Vapor Tight Fixture
No
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and effici
Safety Listing
Not Listed
SDS class
LED_Fixture
Short Description
7.5WLED/RDL/4"BFL/12V 90CRI 3K
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.48
Manufactured By
Satco Products Inc.
